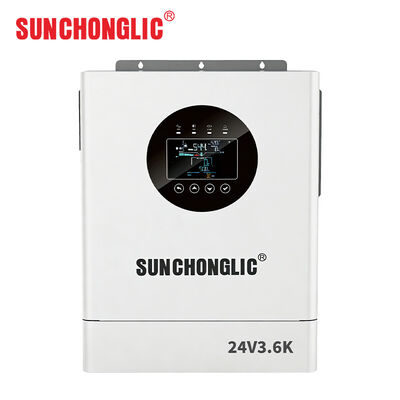

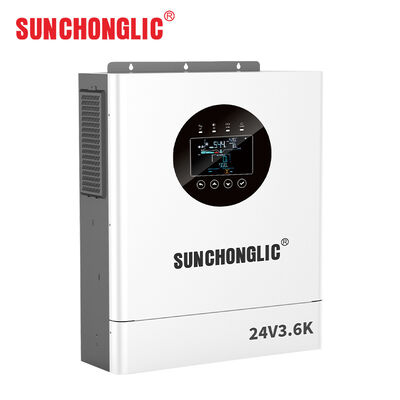

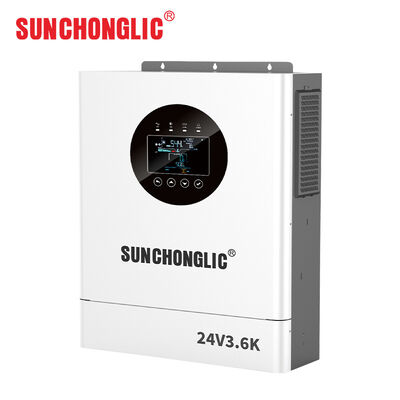

3600W 24V MPPT Hybrid Solar Inverter Charger with Pure Sine Wave Output and UPS Function

Brand Name:	Sunchonglic
Model Number:	SUNer-D 3600-24
MOQ:	100pcs
Price:	US $9.09-67.82
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

3600W 24V Pure Sine Wave Inverter MPPT Hybrid Inverter Charger With UPS DC 24V To AC 220V

Solar Charger Type:

MPPT

Max PV Input Current / Power:

18A/5000W

Frequency:

50/60Hz±0.1%

Max. Efficiency (Battery Mode):

92.7%@12VDC

Power Factor (PF):

Packaging Details:

Paper Box

Highlight:

3600W Hybrid Solar Inverter

24V Inverter Charger

MPPT Pure Sine Wave Inverter

Product Description

3600W 24V Pure Sine Wave Inverter MPPT Hybrid Inverter Charger With UPS

This advanced DC 24V to AC 220V hybrid inverter charger combines high-performance power conversion with comprehensive UPS functionality for reliable energy solutions.

Key Features

Integrated LCD display for real-time monitoring
Wide MPPT range of 18-125V for optimal solar efficiency
Perfect power factor of 1.0 for maximum energy utilization
Built-in 60A solar charger for rapid battery charging
Pure sine wave output for clean, stable power
Comprehensive all-around protection systems

Technical Specifications

AC Input
Model	SUN-D3600-24
Rated Input Voltage (VAC)	208/220/230/240; L+N+PE
Voltage Range (VAC)	90~280±3 (normal mode); 170~280±3 (UPS mode)
Frequency (Hz)	50/60 (Auto Adaptive)
AC Output
Rated Capacity (kW)	3.6
Surge Power (kVA)	5.7
Voltage (VAC)	208/220/230/240
Power Factor (PF)	1
Frequency	50/60Hz±0.1%
Switch Time (ms)	10
Wave Form	Pure Sine Wave
Overload Capacity (Battery Mode)	60s@102%~110%;10s@110%~130%;3s@130%~150%;0.2s@>150%
Max. Efficiency (Battery Mode)	92.7%@12VDC
Charger (PV/AC)
Solar Charger Type	MPPT
Max PV input current / power	18A/5000W
Operating Voltage Range (VDC)	40~450
Max PV Open Circuit Voltage (VDC)	500
Max PV Charge Current (A)	100
Max AC Charge Current (A)	100
Max. Charge Current (PV + AC) (A)	100
Battery
Normal Voltage (VDC)	24
Floating Charge Voltage (VDC)	27
Overcharge Protection (VDC)	30.5
Battery Type	Lithium and Lead-acid
Interface
Reveal	LCD
Communication	RS485/RS232/USB/Dry Contact
Monitoring	WiFi (Optional)
General Data
Ingress Protection	IP21
Operating Temperature	-10℃~50℃
Relative Humidity	5%~95% (Non-condensing)
Storage Temperature	-15℃~60℃
Max. Operating Altitude	4000m (Derating above 1000m)
Dimensions
Product Size (mm)	289420110mm
Package Size (mm)	349480170mm

Manufacturing Excellence

With over 20 years of expertise in solar photovoltaic technology, we operate a state-of-the-art manufacturing facility specializing in mission-critical components. Our product line includes efficient solar power inverters, dependable AGM/GEL lead-acid battery chargers, intelligent solar charge controllers, and complementary equipment. Sunchonglic products are synonymous with unwavering quality, designed and built to provide consistent, high-performance operation.

Production Process

Frequently Asked Questions

Are you the factory manufacturer?

We have been manufacturing Solar Energy Photovoltaic Products for over 20 years. We are the original manufacturer and developer of advanced solar energy products, including hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.

How to select a suitable product?

Simply tell us your specific requirements, and we will recommend the most suitable solution for your needs.

What are your payment methods?

We accept T/T, Trade Assurance, and other secure payment options.

What price terms can you offer?

We can accommodate various price terms including EXW, FOB, CIF, and others based on your preferences.

Where is your main market?

Our Sunchonglic brand products are primarily exported to Southeast Asia, Africa, and the Middle East.

Our products are widely recognized and trusted by clients worldwide and can meet continuously changing economic and social needs. We sincerely welcome new and existing customers from around the world to contact us for future business relationships and mutual success!
