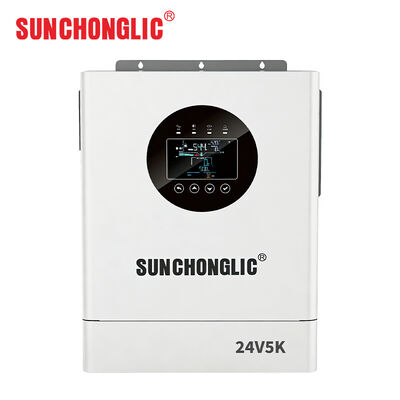

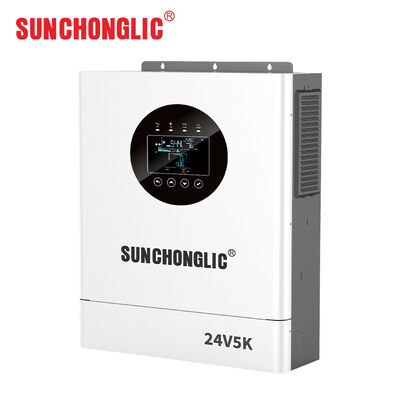

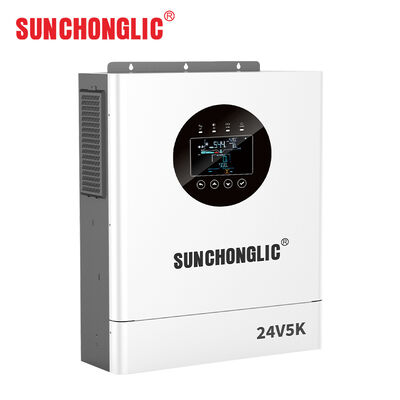

5000W 24V Pure Sine Wave Hybrid Solar Inverter with MPPT Charger and UPS Function

Brand Name:	Sunchonglic
Model Number:	SUNer-D 5000-24
MOQ:	100pcs
Price:	US $9.09-67.82
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

5000W 24V Pure Sine Wave Inverter MPPT Hybrid Inverter Charger With UPS DC - AC Inverter

Solar Charger Type:

MPPT

Max. PV Charging Current:

160A

AC Input Voltage Range:

170-280Vac

Max. PV To AC Efficiency:

96.50%

Cooling Method:

Intelligent Fan Cooling

Packaging Details:

Paper Box

Highlight:

5000W Hybrid Solar Inverter

24V MPPT Inverter Charger

Pure Sine Wave Inverter

Product Description

5000W 24V Pure Sine Wave Inverter MPPT Hybrid Inverter Charger With UPS DC - AC Inverter

Product Features

Equipped with an LCD display for real-time monitoring
Wide MPPT range of 18-125V for optimal solar efficiency
Power factor of 1.0 for maximum energy utilization
Built-in 60A solar charger for comprehensive charging capability
Pure sine wave output for clean, stable power
Comprehensive all-around protection systems

Technical Specifications

PV Array Specifications
Max. PV Array Power	9000W
Max. PV Array Open-Circuit Voltage	500Vdc
Start-up Voltage	80Vdc
MPPT Operating Voltage Range	60-450Vdc
MPPT Efficiency	99.50%
Nominal Input Voltage	360Vdc
Max. Input Current MPPT	27A
Battery Specifications
Battery Type	lead-acid / Li-ion
Nominal Battery Voltage	24V
Battery Voltage Range	21-29V
Max. AC Charging Current	160A
Max. PV Charging Current	160A
Max. Continuous Discharging Current	160A
AC Input Specifications
Nominal Voltage	230Vac
Voltage Range	170-280Vac
Frequency	50Hz (Auto sensing)
High Loss Frequency	65Hz
Low Loss Frequency	45Hz
Max. Input Current	40A
AC Output Specifications
Nominal Voltage	230Vac±5%
Output Voltage Waveform	Pure Sine Wave
Rated Output Power	5000VA/5000W
Nominal Output Frequency	50/60Hz
Transfer Time	10ms
Max. PV to AC Efficiency	96.50%
Max. Battery to AC Efficiency	93.50%
Protection & General Data
Over Temperature Protection	Yes
Overload Protection	3s@≥150% load; 10s@110%~150% load
Operating Temperature Range	-10°C to +50°C
Safety Certification	CE
Relative Humidity	0~95% (Non-condensing)
Max. Operating Altitude	<4000m
Cooling Method	Intelligent Fan cooling
Display	LED+LCD
Degree of Protection	IP21
Weight	8.5kg
Dimensions (WHD)	394109330mm
Mounting Method	Wall Mounted

Manufacturing Excellence

Leveraging our extensive expertise as a long-standing manufacturer in the solar photovoltaic sector, we operate a state-of-the-art facility dedicated to producing mission-critical components: efficient solar power inverters, dependable AGM/GEL lead-acid battery chargers, intelligent solar charge controllers, and complementary equipment. Synonymous with unwavering quality, Sunchonglic products are designed and built to provide consistent, high-performance operation. Connect with us to discover how our proven solutions can meet your specific energy needs!

Frequently Asked Questions

Are you the factory manufacturer?

We have been manufacturing Solar Energy Photovoltaic Products for over 20 years. We are the original manufacturer and developer of advanced Solar Energy Photovoltaic Products, including hybrid solar inverters, power inverters, battery chargers, solar controllers, and solar systems.

How to select a suitable product?

Tell us your requirements, and we will recommend the most suitable product for your needs.

What are your payment methods?

We accept T/T, Trade Assurance, and other secure payment methods.

What price terms can you offer?

We can accommodate various price terms including EXW, FOB, CIF, and others.

Where is your main market?

Most of our Sunchonglic brand products are exported to Southeast Asia, Africa, and the Middle East.

Our products are widely recognized and trusted by our clients and can meet continuously changing economic and social needs. We would sincerely welcome new and old customers from over the world to visit and contact us for future business relationships and mutual success!
