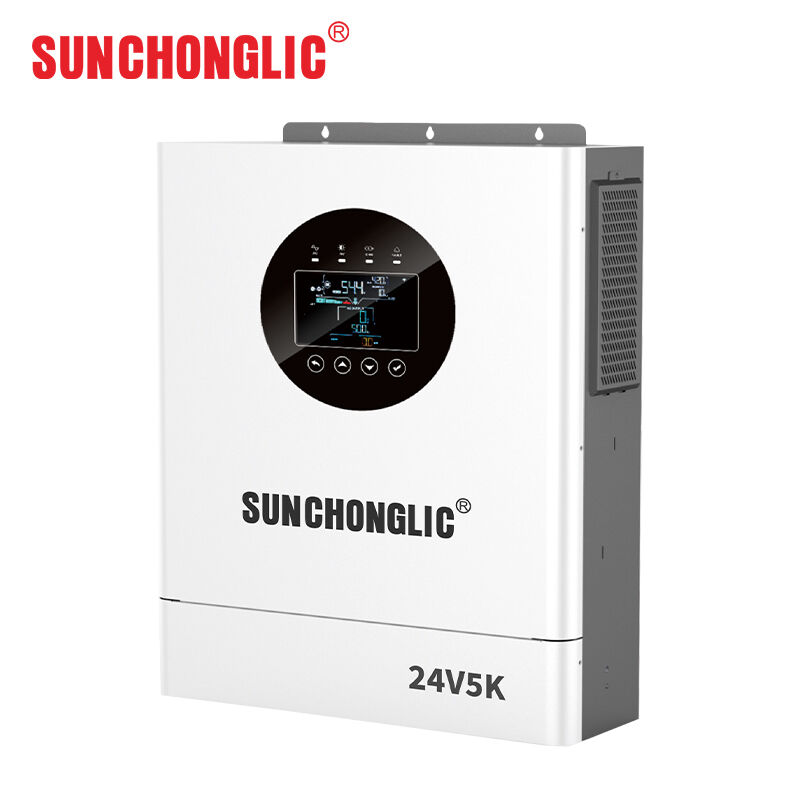

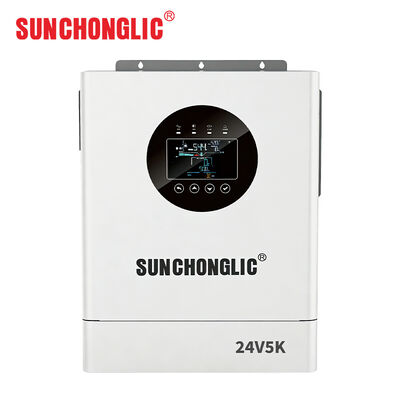

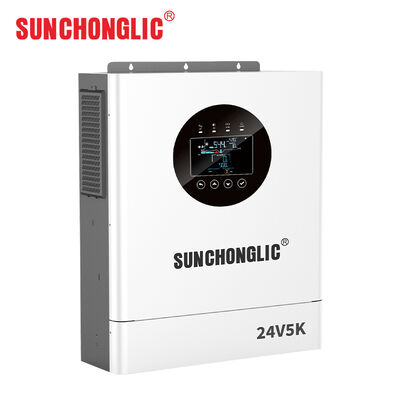

5KW 24V Pure Sine Wave MPPT Hybrid Solar Inverter Charger with UPS Function

Brand Name:	Sunchonglic
Model Number:	SUNer-D 5000-24
MOQ:	100pcs
Price:	US $9.09-67.82
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

5KW 24V Pure Sine Wave Inverter MPPT Hybrid Home Use Inverter Charger With UPS

Transfer Time:

10ms

Max. Input Current:

40A

Display:

LED+LCD

Max. PV To AC Efficiency:

96.50%

Cooling Method:

Intelligent Fan Cooling

Packaging Details:

Paper Box

Highlight:

5KW 24V Hybrid Solar Inverter

Pure Sine Wave Inverter Charger

MPPT Hybrid UPS Inverter

Product Description

5KW 24V Pure Sine Wave Inverter MPPT Hybrid Home Use Inverter Charger With UPS

Product Features

Integrated Multi-Function Design: Combines MPPT solar charge controller, high-frequency pure sine wave inverter, and UPS function module in one unit for off-grid backup and self-consumption applications
Dual Battery System Support: Compatible with both lead-acid and lithium batteries, featuring dedicated communication ports (RS485/CAN) for lithium battery BMS integration
Dual AC Outputs with Smart Control: Two AC outputs (OUT1 and OUT2) with OUT2 capable of automatic shutoff based on battery voltage or usage time for energy savings
Configurable Power Priority Modes: Multiple programmable output source priorities (Grid first, Solar first, PBG, MKS) and charging source priorities for optimized energy usage
Grid-Tie Functionality with Power Control: Supports feeding excess solar power back to the grid with adjustable maximum grid-tie power up to 5.0 kW
Remote Monitoring via WiFi/APP: Built-in or plug-and-play WiFi communication for real-time system monitoring and control via mobile app or web platform

Product Specifications

PV Array
MODEL	SUN-D 5000-24
Max. PV Array Power	9000W
Max. PV Array Open-Circuit Voltage	500Vdc
Start-up Voltage	80Vdc
MPPT Operating Voltage Range	60-450Vdc
MPPT Efficiency	99.50%
Nominal Input Voltage	360Vdc
Max. Input Current MPPT	27A
Battery
Battery Type	lead-acid / Li-ion
Nominal Battery Voltage	24V
Battery Voltage Range	21-29V
Max. AC Charging Current	160A
Max. PV Charging Current	160A
Max. Continuous Discharging Current	160A
AC Input
Nominal Voltage	230Vac
Voltage Range	170-280Vac
Frequency	50Hz(Auto sensing)
High Loss Frequency	65Hz
Low Loss Frequency	45Hz
Max. Input Current	40A
AC Output
Nominal Voltage	230Vac±5%
Output Voltage Waveform	Pure Sine Wave
Rated Output Power	5000VA/5000W
Nominal Output Frequency	50/60Hz
Transfer Time	10ms
Max. PV to AC Efficiency	96.50%
Max. Battery to AC Efficiency	93.50%
Protection
Over Temperature Protection	Yes
Overload Protection	3s@≥150% load;10s@110%~150% load
General Data
Operating Temperature Range	-10 - +50℃
Safety Certification	CE
Relative Humidity	0~95% Relative Humidity(Non-condensing)
Max. Operating Altitude	<4000m
Cooling Method	Intelligent Fan cooling
Display	LED+LCD
Degree of Protection	IP21
Weight	8.5kg
Dimension(WHD)	394109330mm
Mounting Method	Wall Mounted

Our Manufacturing Expertise

As a seasoned manufacturer with over 20 years of experience, we specialize in producing a comprehensive range of solar photovoltaic products including solar inverters, AGM/GEL lead-acid battery chargers, and solar charge controllers. Our Sunchonglic products are renowned for their high performance, reliability, and cost-effectiveness.

Our product line includes pure sine wave inverters, UPS chargers, voltage stabilizers, and both PWM and MPPT solar charge controllers. Backed by advanced testing facilities and a strong R&D team, we continuously optimize our products to meet diverse industry requirements.

We offer customized solutions and maintain a 10,000-square-meter logistics center with complete after-sales support. Our products are widely used in markets across the Middle East, Southeast Asia, Africa, and South America.

Frequently Asked Questions

Q1. Are you the factory manufacturer?

We have been manufacturing Solar Energy Photovoltaic Products for over 20 years. We are the original manufacturer and developer of advanced solar energy products including hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.

Q2. How to select a suitable product?

Tell us your requirements and we will recommend the most suitable product for your needs.

Q3. What are your payment methods?

We accept T/T, Trade Assurance, and other secure payment options.

Q4. What price terms can you offer?

We can accommodate various price terms including EXW, FOB, CIF and others.

Q5. Where are your main markets?

Our Sunchonglic brand products are primarily exported to Southeast Asia, Africa, and the Middle East.

Our products are widely recognized and trusted by clients worldwide and can meet continuously changing economic and social needs. We sincerely welcome both new and existing customers to contact us for future business relationships and mutual success!
