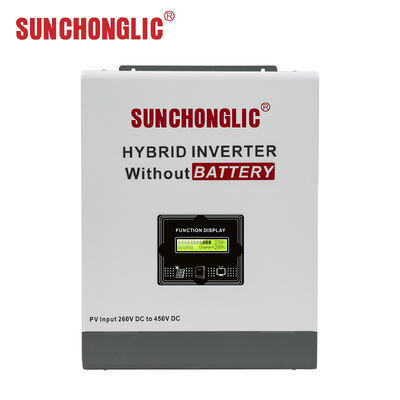

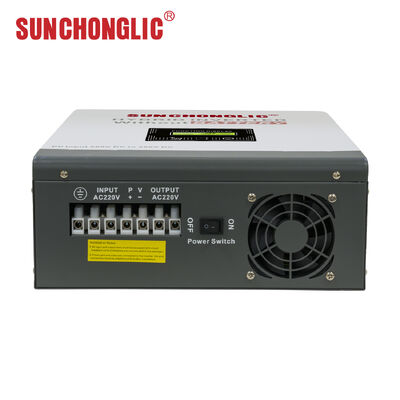

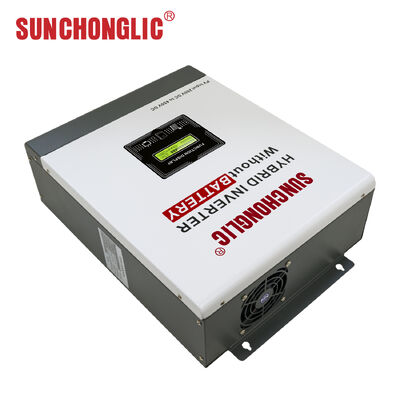

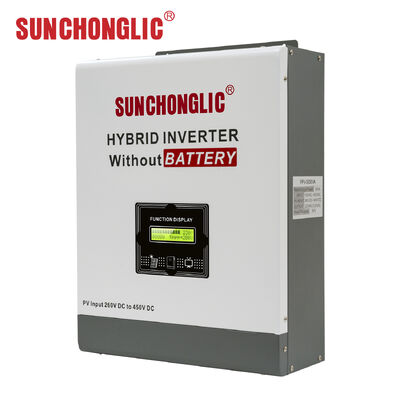

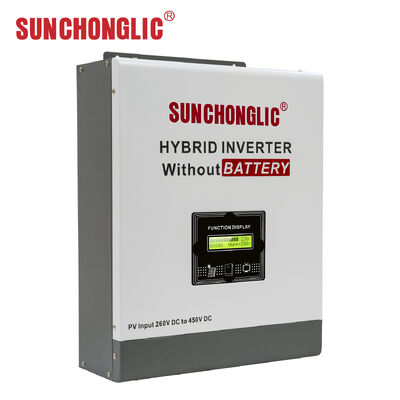

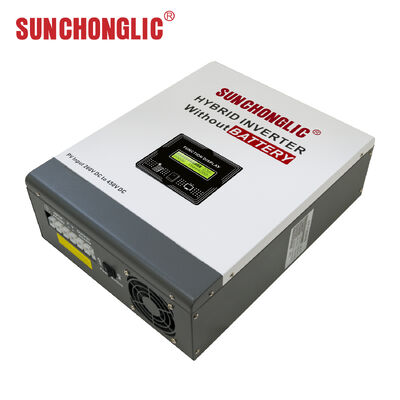

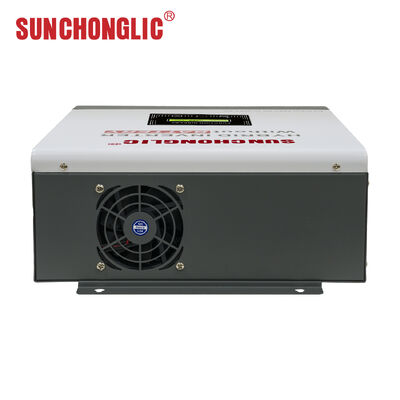

5.5KVA Pure Sine Wave Hybrid Solar Inverter with No Battery Required for Off-Grid Systems

Name: 5.5KVA Pure Sine Wave Hybrid Solar Inverter with No Battery Required for Off-Grid Systems
Brand: Foshan Suntway Technology Co. Ltd.
SKU: FPV-5.5KVA
Price: 773.62 USD
Availability: InStock

Brand Name:	Sunchonglic
Model Number:	FPV-5.5KVA
MOQ:	5pcs
Price:	US $274.62-1273.85
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

FPV-5.5KVA 220V AC 450V PV Input Pure Sine Wave Hybrid Solar Inverter Off-Grid MPPT

Output Waveform:

Pure Sine Wave Output

PV Input Voltage Range:

260VDC-450CVDC

Cooling Method:

Fan Cooling

AC Rated Voltage:

220VAC

Maximum Input Power:

3500W

Packaging Details:

Paper Box

Highlight:

5.5KVA hybrid solar inverter

pure sine wave solar inverter

off-grid solar inverter no battery

Product Description

FPV-5.5KVA 220V AC 450V PV Input Pure Sine Wave Hybrid Solar Inverter Off-Grid MPPT

Cost-Effective Home Solar Solution

This 5.5KVA (3500W rated) hybrid solar inverter is designed for off-grid home solar systems, eliminating the need for an extra external battery to significantly reduce your system cost. It features a wide PV input range of 260V DC to 450V DC, with a maximum solar input current of 13A, making it compatible with most common solar panel string configurations.

Key Features

Pure Sine Wave Output: Delivers stable 220V AC power (160VAC-240VAC adjustable) for sensitive home appliances like air conditioners, refrigerators, and rice cookers.
No Battery Required: Operates directly from solar panels, offering a more economical and affordable solar system for home use.
Built-in MPPT & UPS: Integrated anti-islanding protection, multiple safety protections, and an uninterrupted power supply function for reliable power delivery.
High Efficiency: Achieves up to 95% maximum efficiency, with low current harmonics (<5%) to protect your devices.
Optional 12V DC Output: Supports additional 12V DC load connection for extended usage scenarios.

Technical Specifications

Parameter	FPV-5.5KVA	FPV-7.5KVA	FPV-10KVA
Maximum Input Power (W)	3500W	5000W	7000W
PV Input Voltage Range (Vdc)	260VDC-450VDC
PV Max Input Current (Idc)	13A	18A	23A
AC Input Range (Vac)	150VAC-300VAC
AC Rated Voltage (Vac)	220VAC
Peak Output Power (W)	5000W	6000W	8000W
Rated Output Power (W)	3500W	5000W	7000W
Output Waveform	Pure Sine Wave
Output Voltage Range (Vac)	160VAC-240VAC
Maximum Output Current (A)	18A	25A	35A
Rated Output Current (A)	16A	22.7A	28A
Output Frequency Range (Hz)	40Hz-50Hz
Current Harmonics (at rated power)	<5%
Maximum Efficiency	95%
Operating Temperature Range (°C)	-25 to +60
Relative Humidity	0-95% No condensation
Altitude (m)	≤2000
Cooling Method	Fan cooling
Nighttime Energy Consumption (W)	<0.2
Noise Decibel (dB)	<50
Communication LCD	2 lines of character display
Dimensions (WDH) mm	375330125	-	-
Weight (KG)	5.6	-	-

Manufacturer Profile

We are an established manufacturer of solar energy photovoltaic products with decades of experience. Our factory produces solar power inverters, AGM/GEL lead acid battery chargers, solar charge controllers, and complete solar systems. Sunchonglic brand products represent excellent value and reliability.

Frequently Asked Questions

Are you the factory manufacturer?

We have specialized in solar energy photovoltaic products for over 20 years. We are the original manufacturer and developer of advanced solar energy products including hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.

How to select a suitable product?

Tell us your specific requirements and we will recommend the most suitable product for your needs.

What are your payment methods?

We accept T/T, Trade Assurance, and other secure payment options.

What price terms can you offer?

We can accommodate EXW, FOB, CIF, and other international trade terms.

Where is your main market?

Our Sunchonglic brand products are primarily exported to Southeast Asia, Africa, and the Middle East.

Our products are widely recognized and trusted by clients worldwide, meeting continuously evolving economic and social needs. We sincerely welcome new and existing customers to contact us for future business relationships and mutual success!
