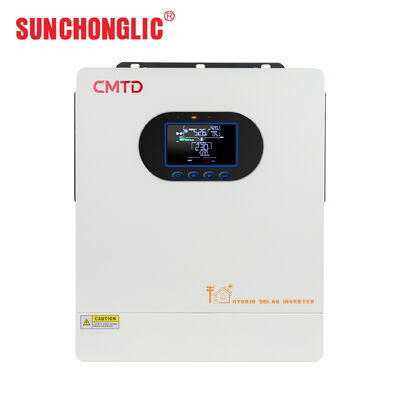

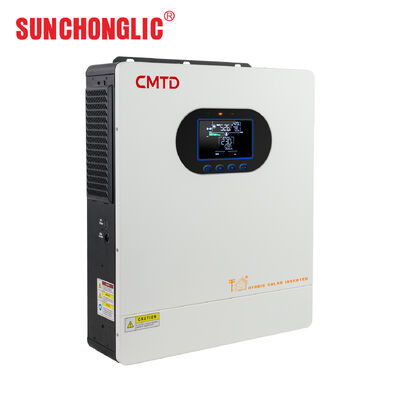

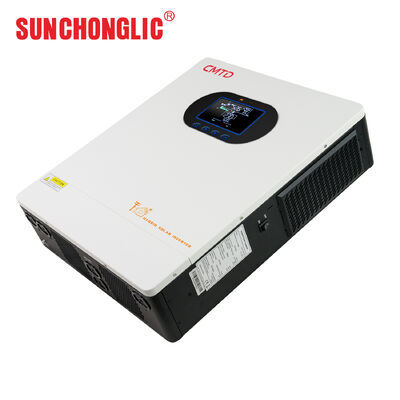

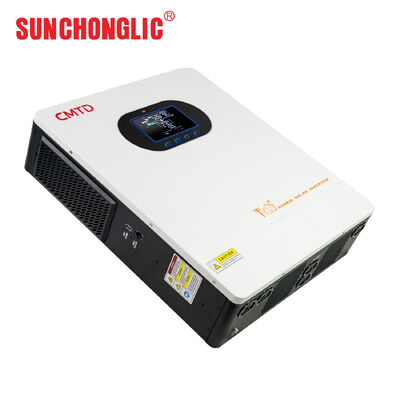

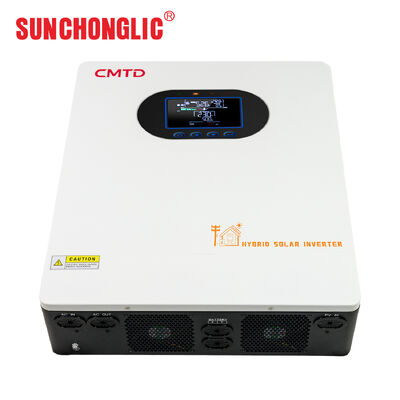

12KW 48V Pure Sine Wave Hybrid Solar Inverter with MPPT Charger and UPS Function

Brand Name:	Sunchonglic
Model Number:	SUN-D 12000-48
MOQ:	100pcs
Price:	US $9.09-67.82
Payment Terms:	T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Factory Direct SUN-D 12KW 48V Pure Sine Wave Hybrid Solar Inverter | MPPT Charger With UPS Function For Home Solar System

Nominal Output Frequency:

50/60Hz

Max. PV To AC Efficiency:

96.50%

Rated Output Power:

12000VA/12000W

Nominal Voltage:

230Vac±5%

Battery Type:

Lead-acid /Li-ion

Packaging Details:

Paper Box

Highlight:

12KW hybrid solar inverter

48V pure sine wave inverter

MPPT solar inverter with UPS

Product Description

Factory Direct SUN-D 12KW 48V Pure Sine Wave Hybrid Solar Inverter | MPPT Charger with UPS Function for Home Solar System

Product Overview

This 12KW 48V hybrid solar inverter is a multi-functional power conversion solution designed for home and commercial solar systems. It combines a high-efficiency MPPT solar charger, AC charger, pure sine wave inverter, and UPS backup function in one unit, delivering stable and reliable power for all types of loads.

Key Features

12000W Continuous Output with Pure Sine Wave, compatible with sensitive electronics
Built-in high-efficiency MPPT controller, supporting 15KW max PV input
48V DC to 220V AC conversion, suitable for lead-acid and lithium batteries
UPS function with <10ms transfer time, ensuring uninterrupted power supply
Wide voltage range and dual PV inputs for flexible system configuration
Multiple protection: over-temperature, over-load, short-circuit, over-voltage protection
Intelligent fan cooling design for stable operation in different environments

Technical Specifications

PV Array
Max. PV Array Power	15KW (PV1+PV2)
Max. PV Array Open-Circuit Voltage	500Vdc
Start-up Voltage	80Vdc
MPPT Operating Voltage Range	60-450Vdc
MPPT Efficiency	99.5%
Nominal Input Voltage	360Vdc
Max. Input Current MPPT	45A (PV1+PV2)
Battery
Battery Type	lead-acid / Li-ion
Nominal Battery Voltage	48V
Battery Voltage Range	42-58V
Max. AC Charging Current	160A
Max. PV Charging Current	160A
Max. Continuous Discharging Current	200A
AC Input
Nominal Voltage	230Vac
Voltage Range	170-280Vac
Frequency	50Hz (Auto sensing)
High Loss Frequency	65Hz
Low Loss Frequency	45Hz
Max. Input Current	60A
AC Output
Nominal Voltage	230Vac±5%
Output Voltage Waveform	Pure Sine Wave
Rated Output Power	12000VA/12000W
Nominal Output Frequency	50/60Hz
Transfer Time	10ms
Max. PV to AC Efficiency	96.5%
Max. Battery to AC Efficiency	93.5%
Protection
Over Temperature Protection	Yes
Overload Protection	3s@≥150% load; 10s@110%~150% load
General Data
Operating Temperature Range	-10°C~ +50°C
Safety Certification	CE
Relative Humidity	0<95% Relative Humidity (Non-condensing)
Max. Operating Altitude	< 4000m
Cooling Method	Intelligent Fan cooling
Display	LED + LCD
Degree of Protection	IP21

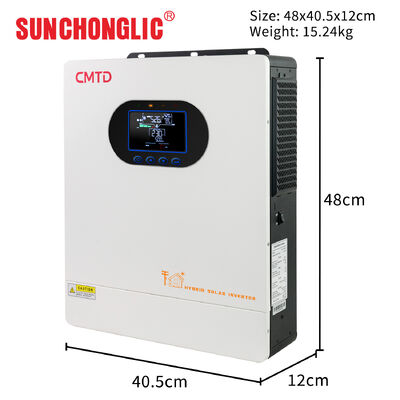

Weight	13.9kg
Dimension (WHD)	480118405mm
Mounting Method	Wall Mounted

Manufacturing Excellence

With over 20 years of expertise in solar photovoltaic technology, we operate a state-of-the-art manufacturing facility specializing in mission-critical components. Our product line includes efficient solar power inverters, dependable AGM/GEL lead-acid battery chargers, intelligent solar charge controllers, and complementary equipment. Sunchonglic products are synonymous with unwavering quality, designed and built to provide consistent, high-performance operation.

Frequently Asked Questions

Are you the factory manufacturer?

We have been manufacturing Solar Energy Photovoltaic Products for over 20 years. We are the original manufacturer and developer of advanced solar energy products, including hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.

How to select a suitable product?

Simply tell us your specific requirements, and we will recommend the most suitable solution for your needs.

What are your payment methods?

We accept T/T, Trade Assurance, and other secure payment options.

What price terms can you offer?

We can accommodate various price terms including EXW, FOB, CIF, and others based on your preferences.

Where is your main market?

Our Sunchonglic brand products are primarily exported to Southeast Asia, Africa, and the Middle East.

Our products are widely recognized and trusted by clients worldwide and can meet continuously changing economic and social needs. We sincerely welcome new and existing customers from around the world to contact us for future business relationships and mutual success!
