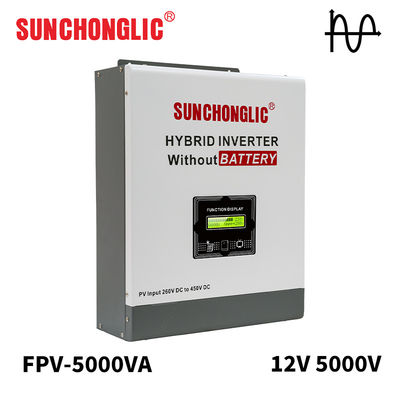

220V AC Output 450V PV Input Pure Sine Wave Hybrid Solar Inverter Off Grid MPPT Inverter

220V AC Output 450V PV Input Pure Sine Wave Hybrid Solar Inverter Off Grid MPPT Inverter

Brand Name:	Sunchonglic
Model Number:	FPV-5KVA
MOQ:	5pcs
Price:	US $274.62-1273.85
Payment Terms:	,T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

220V 5000w 5kw Off Grid MPPT 450V PV Hybrid Solar Inverter Without Battery

Output Waveform:

Pure Sine Wave Output

PV Input Voltage Range:

260VDC-450CVDC

Cooling Method:

Fan Cooling

AC Rated Voltage:

220VAC

Maximum Input Power:

3500W

Packaging Details:

Paper Box

Highlight:

220V 5kw hybrid solar inverter

Without Battery 5kw hybrid solar inverter

220V Off Grid Hybrid Inverter

Product Description

220V 5kW Hybrid Solar Inverter Without Battery Off Grid Hybrid Inverter

Product Overview

This 220V 5000W off-grid MPPT 450V PV hybrid solar inverter operates without external batteries, providing an economical and efficient solar power solution for residential applications.

Key Features

PV array input voltage range: 260V DC to 450V DC
No external battery required - more economical solar system for home use
Mains 220V AC output
Built-in 12V DC output interface (Optional)
Multiple safety protections including anti-islanding protection
Built-in uninterrupted power supply

Technical Specifications

Model	FPV-5.5KVA	FPV-7.5KVA	FPV-10KVA
Maximum Input Power (W)	3500W	5000W	7000W
PV Input Voltage Range (Vdc)	260VDC-450VDC
PV Max Input Current (Idc)	13A	18A	23A
AC Input Range (Vac)	150VAC-300VAC
AC Rated Voltage (Vac)	220VAC
Peak Output Power (W)	5000W	6000W	8000W
Rated Output Power (W)	3500W	5000W	7000W
Output Waveform	Pure Sine Wave
Output Voltage Range (Vac)	160VAC-240VAC
Maximum Output Current (A)	18A	25A	35A
Rated Output Current (A)	16A	22.7A	28A
Output Frequency Range (Hz)	40Hz-50Hz
Current Harmonics (at rated power)	<5%
Maximum Efficiency	95%
Operating Temperature Range (°C)	-25 to +60
Relative Humidity	0-95% No condensation
Altitude (m)	≤2000
Cooling Method	Fan cooling
Nighttime Energy Consumption (W)	<0.2
Noise Decibel (dB)	<50
Communication LCD	2 lines of character display
Dimensions (WDH) mm	375330125
Weight (KG)	5.6

Manufacturer Profile

We are an established manufacturer of solar energy photovoltaic products with decades of experience. Our factory produces solar power inverters, AGM/GEL lead acid battery chargers, solar charge controllers, and complete solar systems. Sunchonglic brand products represent excellent value and reliability.

Production Process

Frequently Asked Questions

Q1. Are you the factory manufacturer?

We have specialized in solar energy photovoltaic products for over 20 years. We are the original manufacturer and developer of advanced solar energy products including hybrid solar inverters, power inverters, battery chargers, solar controllers, and complete solar systems.

Q2. How to select a suitable product?

Tell us your specific requirements and we will recommend the most suitable product for your needs.

Q3. What are your payment methods?

We accept T/T, Trade Assurance, and other secure payment options.

Q4. What price terms can you offer?

We can accommodate EXW, FOB, CIF, and other international trade terms.

Q5. Where is your main market?

Our Sunchonglic brand products are primarily exported to Southeast Asia, Africa, and the Middle East.

Our products are widely recognized and trusted by clients worldwide, meeting continuously evolving economic and social needs. We sincerely welcome new and existing customers to contact us for future business relationships and mutual success!
