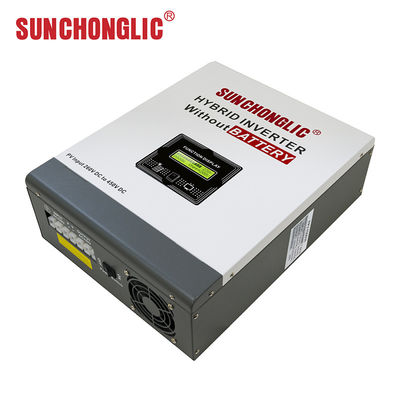

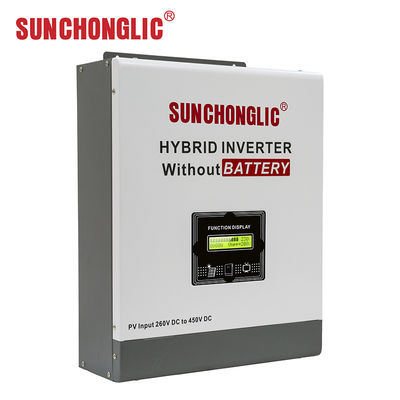

Easy Installation 7.5kw Hybrid Solar Inverter Off Grid MPPT 450V PV

Easy Installation 7.5kw Hybrid Solar Inverter Off Grid MPPT 450V PV

Brand Name:	Sunchonglic
Model Number:	FPV-7.5KVA
MOQ:	5pcs
Price:	US $274.62-1273.85
Payment Terms:	,T/T
Supply Ability:	100000pcs/mon

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Hybrid Solar Inverter Without Battery 7500w 7.5kw Off Grid MPPT 450V PV

LCD:

2 Lines Of Character Display

AC Input Range(Vac):

150VAC-300VAC

Peak Output Power(W):

6000

Rated Output Current(A):

22.7A

PV Max Input Current (Idc):

Packaging Details:

Paper Box

Highlight:

Easy Installation 7.5kw Hybrid Inverter

450V PV 7.5kw Hybrid Inverter

Simplicity Hybrid Solar Inverter Without Battery

Product Description

Easy Installation 7.5kW Hybrid Inverter Off Grid MPPT 450V PV

Hybrid Solar Inverter Without Battery 7500W 7.5kW Off Grid MPPT 450V PV - Simplicity and Reliability

Product Features

PV array voltage input range: 260V DC to 450V DC
No external battery required - economical and affordable solar system for home
Grid 220V AC output
Built-in 12V DC output interface (Optional)
Various safety protections including anti-islanding safeguard
Built-in uninterrupted power supply

Product Specifications

PV DC Input Parameters
Model	FPV-7.5KVA
Maximum Input Power (W)	5000W
PV Input Voltage Range (Vdc)	260VDC-450VDC
PV Max Input Current (Idc)	18
AC Input Parameters
AC Input Range (Vac)	150VAC-300VAC
AC Rated Voltage (Vac)	220VAC
AC Output Parameters
Peak Output Power (W)	6000
Rated Output Power (W)	5000
Output Waveform	Pure Sine Wave
Output Voltage Range (Vac)	160VAC-240VAC
Maximum Output Current (A)	25A
Rated Output Voltage (Vac)	220V/230V
Rated Output Current (A)	22.7A
Output Frequency Range (Hz)	40Hz-50Hz
Current Harmonics (at rated power)	<5%
Maximum Efficiency	95%
Environmental Parameters
Operating Temperature Range (°C)	-25 to +60
Relative Humidity	0-95% No Condensation
Altitude (m)	≤2000
Cooling Method	Fan Cooling
Nighttime Energy Consumption (W)	<0.2
Noise Decibel (dB)	<50
Communication
LCD Display	2 Lines of Character Display
Mechanical Properties
Dimensions (Width * Depth * Height) mm	375 * 330 * 125
Weight (KG)	5.6

Our Factory

We are a seasoned manufacturer with extensive experience in solar energy photovoltaic products. Our factory specializes in manufacturing a diverse range of products including solar power inverters, AGM/GEL lead acid battery chargers, solar charge controllers, and more.

For additional details, please reach out to us at any time!

Production Process

Frequently Asked Questions

Q1. Are you the factory manufacturer?

We have been manufacturing solar energy photovoltaic products for over 20 years. We are the original manufacturer and developer of advanced solar energy photovoltaic products, including hybrid solar inverters, power inverters, battery chargers, solar controllers, and solar systems.

Q2. How to select a suitable product?

Tell us your requirements and we will recommend the most suitable product for your needs.

Q3. What are your payment methods?

We accept T/T and Trade Assurance, among other payment options.

Q4. What price terms can you offer?

We can accept EXW, FOB, CIF, and other international trade terms.

Q5. Where is your main market?

Our Sunchonglic brand products are primarily exported to Southeast Asia, Africa, and the Middle East.

Our products are widely recognized and trusted by our clients and can meet continuously changing economic and social needs.

We sincerely welcome new and existing customers from around the world to visit and contact us for future business relationships and mutual success!
